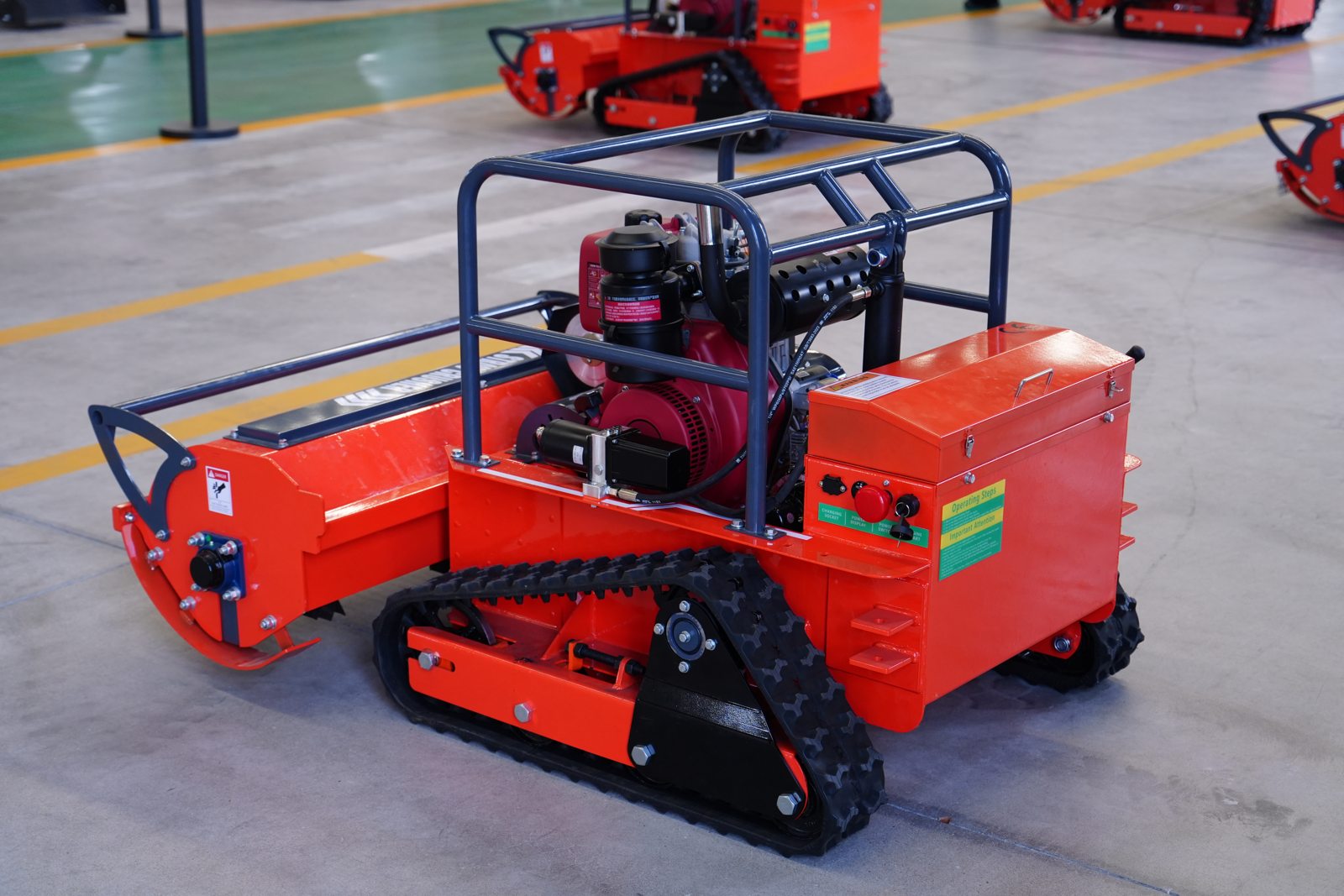

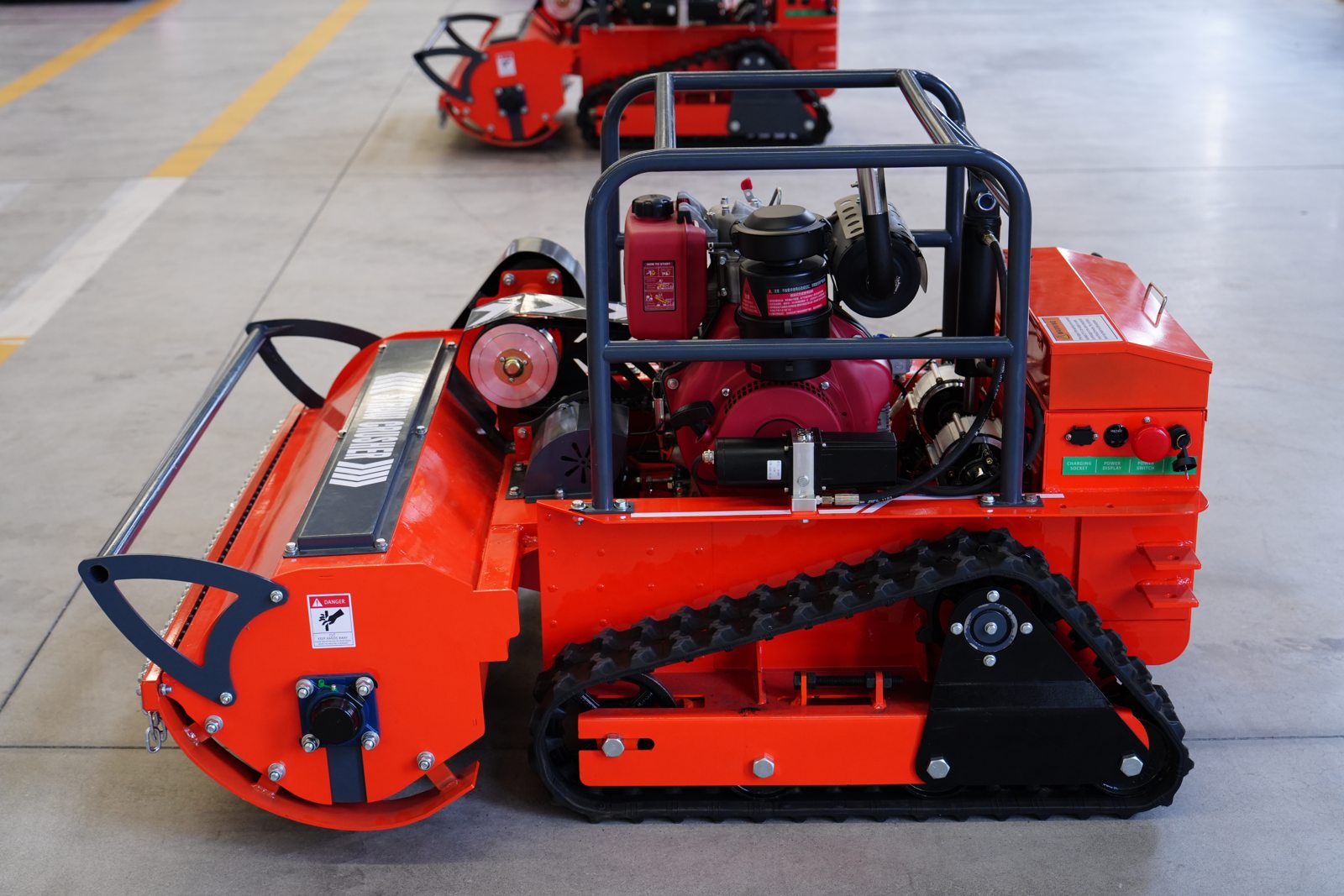

LG-120A

1.2 m heavy-duty land clearing on slopes and rough terrain.
The flagship of the land-clearing line. A 1200 mm vertical-blade cutting deck, Yanmar diesel power and a range-extender self-charging system let the LG-120A clear dense brush, weeds and wild growth all day without recharging – controlled safely from up to 200 m away.

Yanmar 195 diesel, 15 HP — industrial-grade diesel engine with electric start
Range-extender self-charging — the engine recharges the batteries while working – no downtime
1200 mm cutting width — covers more ground per pass on large plots
200 m remote control — operate from a safe distance on steep or overgrown land

Suitable for: land clearing, brush control, orchards, vineyards and steep terrain

Get export quotation

Chat on WhatsApp Email Us

Customization options
Machine color	Multiple colors available; custom color on request
Packaging	Export iron-frame packing
Export terms	FOB / CIF / DDP

Specifications — LG-120A
Cutting width	1200 mm
Cutting height	20 – 200 mm (manual adjustment)
Engine	Yanmar 195 diesel, 15 HP, electric start
Emission	EU Stage V compliant engine
Self-charging	Range-extender system – engine charges batteries during operation
Travel speed	0 – 5 km/h
Slope capability	0 – 40 deg
Drive motors	Brushless 800 W x 2
Battery	Lead-acid 12V20Ah x 2
Remote control	C7 controller, 200 m range
Machine size (L x W x H)	1620 x 1400 x 950 mm
Machine weight	436 kg
Packing size	1680 x 1480 x 1070 mm
Shipping weight	526 kg
Loading qty	20’GP: 6 units / 40’HQ: 24 units (iron frame)

Ordering & compliance
CE documentation	Available on request
Emission standard	EU Stage V compliant engines
Production schedule	Confirmed per order – depends on quantity and destination
Spare parts	Supplied with orders and during the partnership

Optional configurations

Plus rechargeable remote controller
KP195 diesel 15 HP
Changchai 1100 diesel 18 HP
Briggs & Stratton 13.5 HP gasoline engine
Remote hydraulic height adjustment
Upgraded battery packs (3 / 5 batteries, dual generation)

All options quoted on request. Custom colors available on request.

Engineering notes

Why it is built this way

Vertical flail blade, made for tough stems

The vertical blade shaft strikes and shreds brush and wild growth instead of pushing it flat – so cleared land stays cleared and regrowth is slower.

Self-charging power architecture

While the engine works, it recharges the on-board battery that powers the remote system and electronics – the machine keeps running without waiting on a charger.
